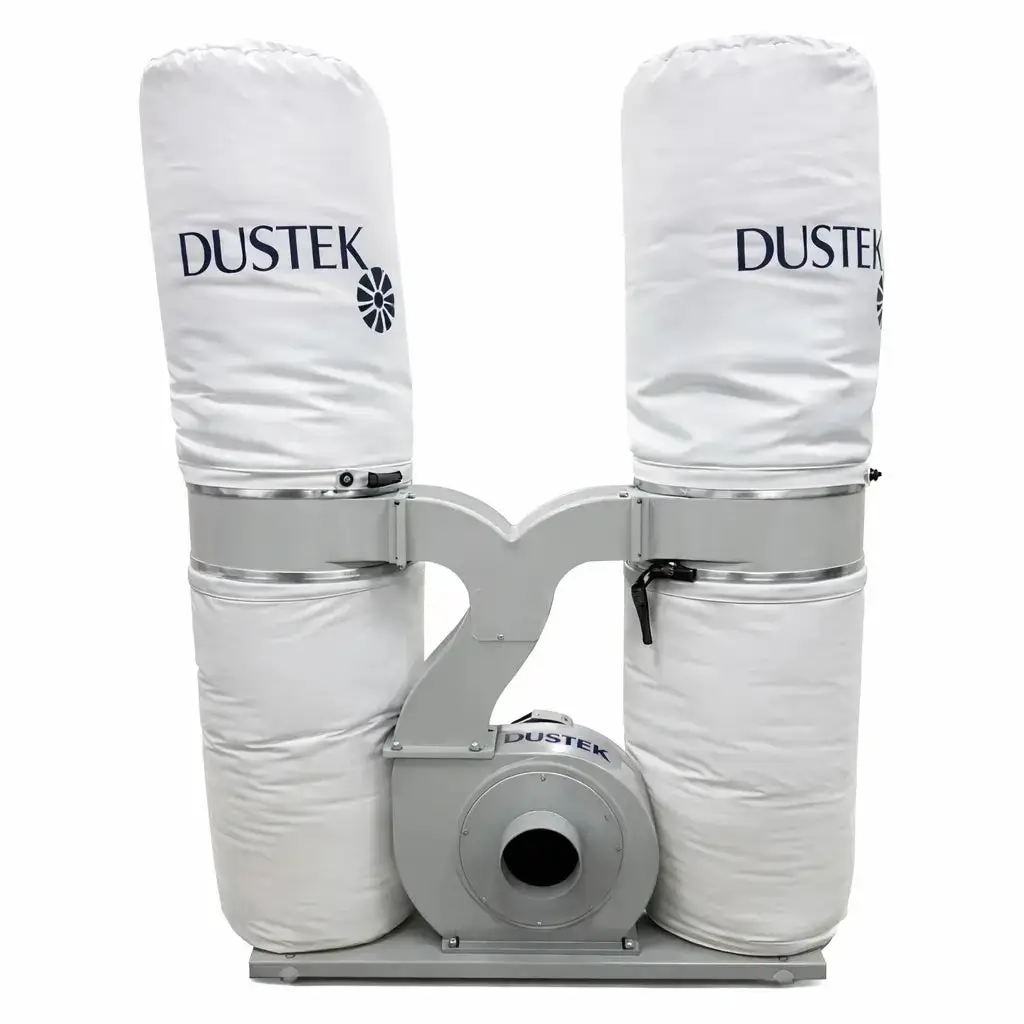

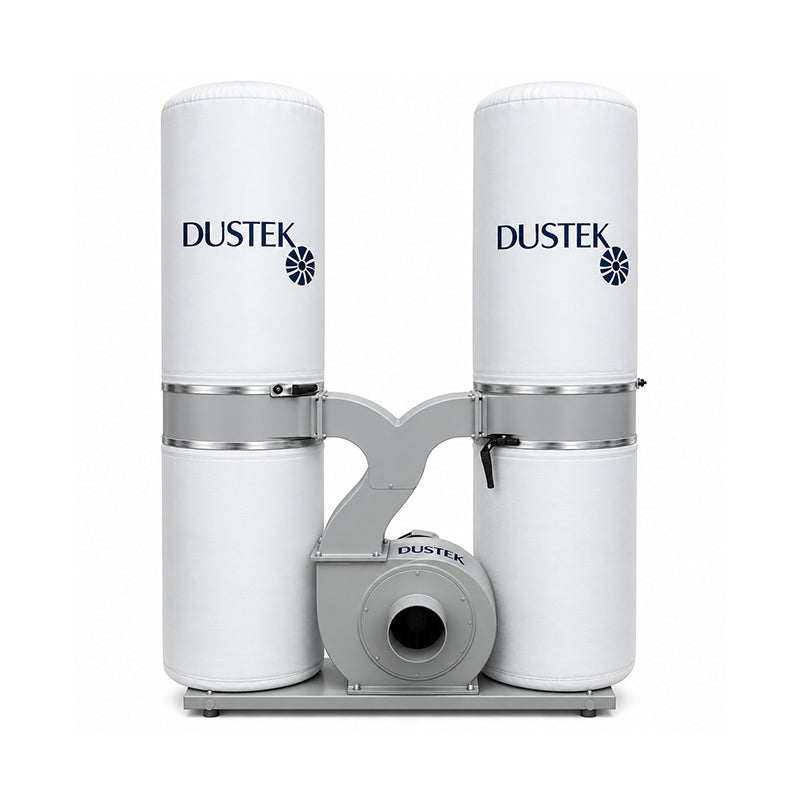

Dustek Model Dusty JR-31 Dust Collector
The Dustek "DUSTY" Model JR-31 (previously the JR-30) is a high-efficiency, mobile dust collection system engineered for professional versatility. Powered by a 3 HP, single-phase TEFC motor, this unit delivers a powerful 1,200 CFM suction capacity, providing an industrial-grade solution for shops requiring portability without sacrificing performance.
Key Technical Specifications
| Feature | Specification |
|---|---|
| Motor | 3 HP, Single Phase (230V) TEFC / 3,450 RPM |
| Suction Capacity | 1,200 CFM |
| Impeller | 12″ Precision Balanced Steel |
| Filtration Rating | 30 Microns |
| Sound Level | 72 dB |
| Inlet Size | 6″ (Includes Triple Manifold) |
| Inlet Height | 12.5″ from floor |
| Storage Capacity | 24 Cubic Feet |
| Top Bag Length | 32″ |
| Weight | 185 lbs. |
| Dimensions | 22″ x 79″ x 61″ |
Professional Grade Features
- TEFC Motor: The Totally Enclosed Fan-Cooled motor ensures internal electrical components remain dust-free for maximum service life.
- Magnetic Starter: Features a push-button magnetic starter for superior electrical protection and safety.
- Steel Impeller: The 12-inch steel impeller is built to withstand high-velocity debris that would damage standard plastic or aluminum fans.
- Full Mobility: Heavy-duty casters come standard, allowing the unit to be moved easily for temporary installations or layout changes.
What’s Included?
- (1) 32" Top Filtration Bag (30-micron rating).
- (1) Cloth or Plastic Collection Bag (24 cu. ft. capacity).
- Removable Triple-Inlet Manifold: For multiple machine connections.
- Mobile Caster Kit: For shop-wide portability.
-
Operational Documentation: Complete manual and parts list.
**This item ships via freight carrier on a pallet or crate. Shipping costs will be calculated based on your delivery address and invoiced separately after checkout. Additional fees may apply for liftgate service, residential delivery, or inside delivery.
