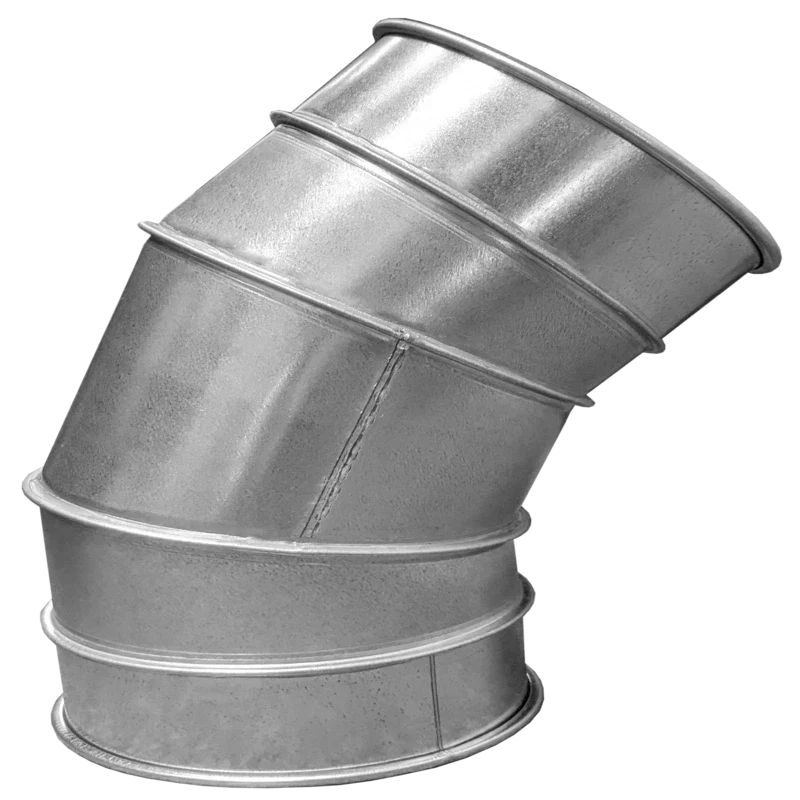

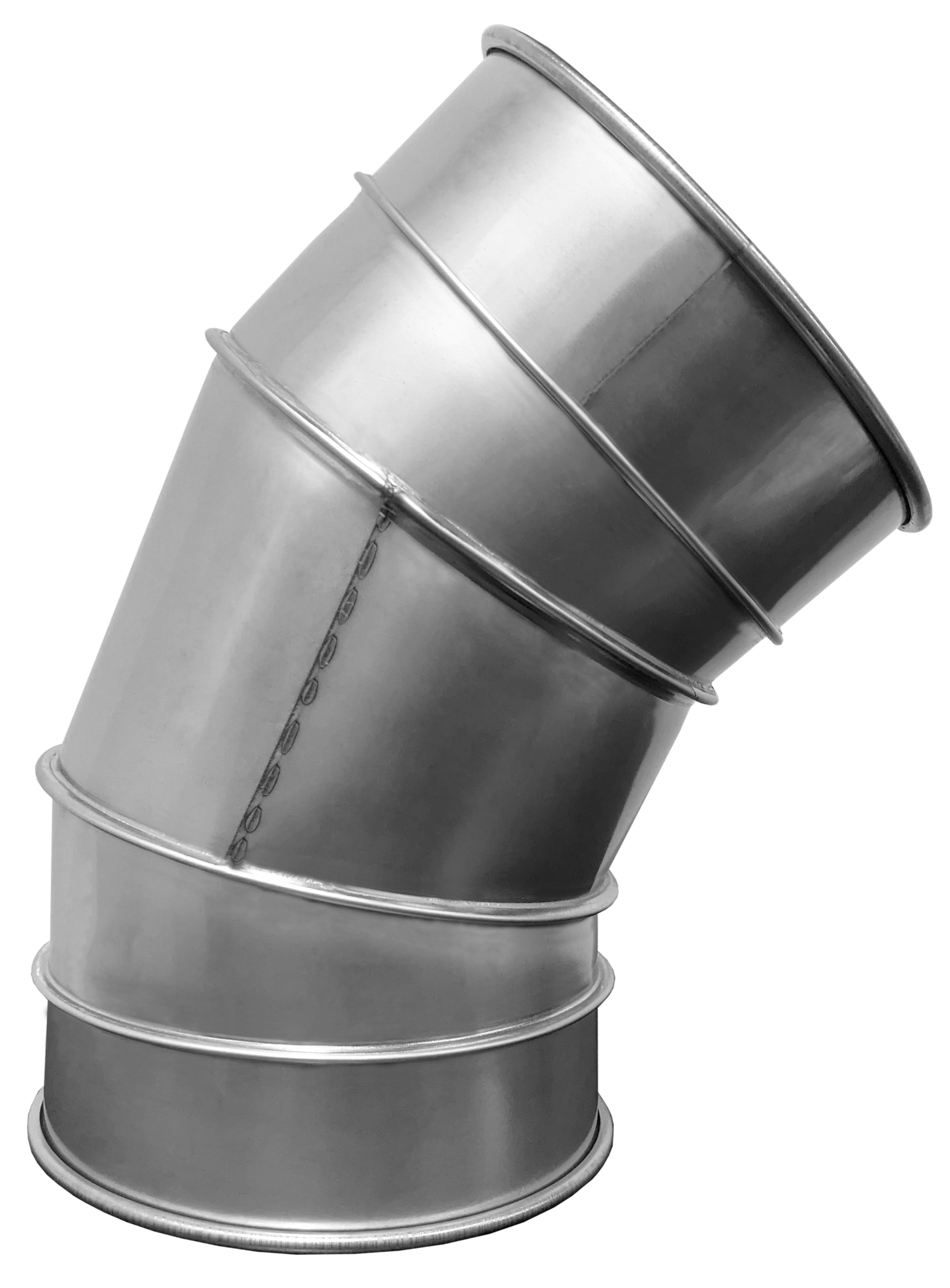

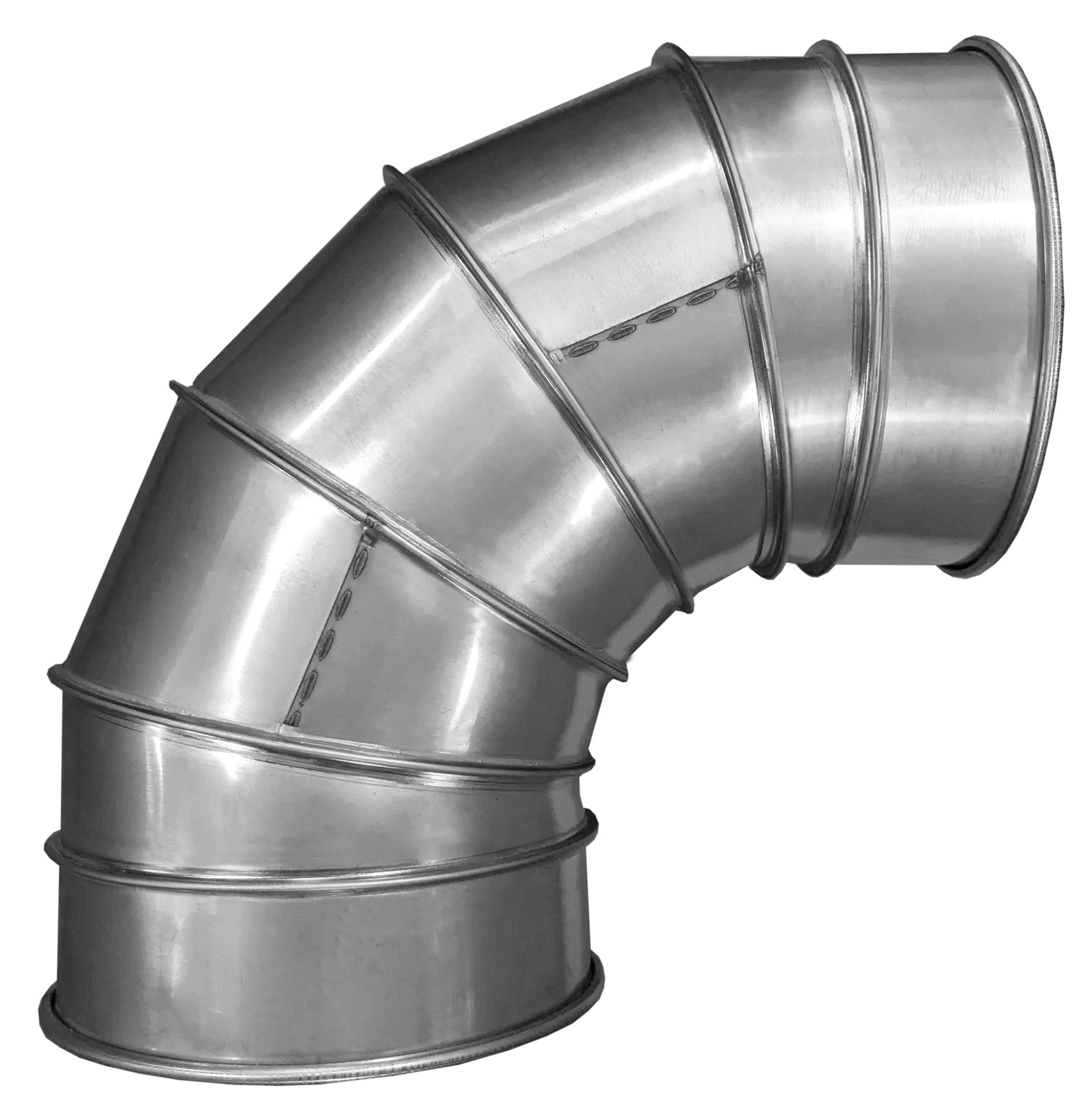

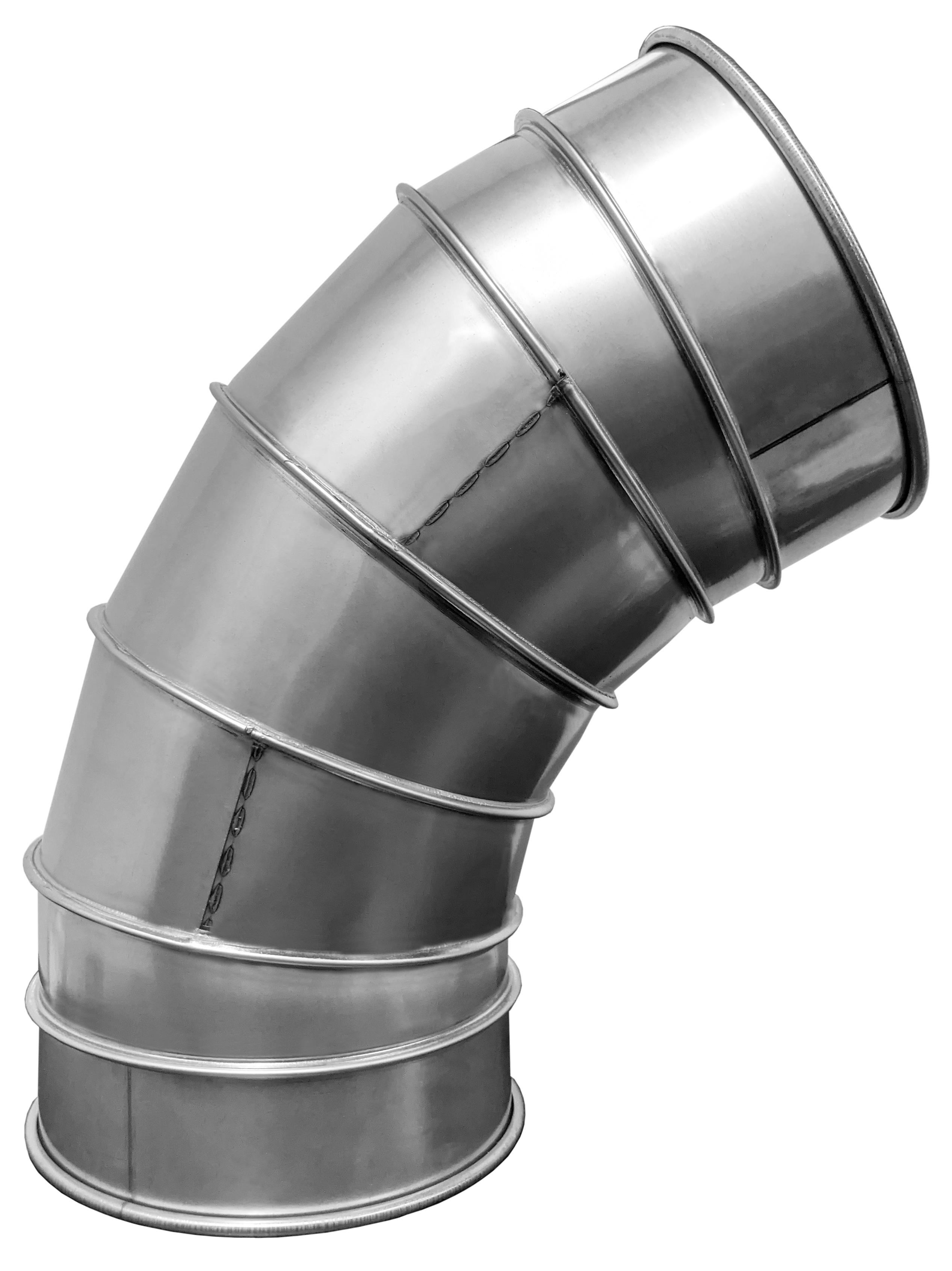

Segmented Elbows

Segmented, or gored, Elbows deliver smooth, sweeping directional changes for larger-diameter dust collection and ventilation lines. Built with a 1.5D centerline radius (the radius equals 1.5 times the duct diameter), they create a gradual turn that keeps airflow moving efficiently and reduces abrasion from high-velocity chips and dust, making them ideal for main lines and larger drops.

Route your system, change direction, or reconfigure a run in seconds, and just as easily take it apart for cleaning or relocation.

Features

• Rolled-lip ends connect to Quick Clamp Clamp-Together Duct (CTD)
• Tool-free connection; no rivets, screws, or sealants needed
• Galvanized steel (8-inch–12-inch 20-gauge, 14-inch 18-gauge)
