End dragging or kinked flex hose connections on cutter heads and other moving equipment by installing a Ball Joint. The base swivels a full 360 degrees, letting the hose move freely above the machine while airflow stays steady. It's the simple fix for flex hose that keeps binding, sagging, or wearing out where your equipment moves, and it pairs well with swivel joints for even greater range of motion.
Rolled-lip end that connects to Quick Clamp Clamp-Together Duct (CTD) using quick clamps and gaskets, while the hose side connects in minutes with a simple worm clamp (not included). Fast to set up, easy to adjust, and quick to take apart for cleaning or relocation.
Features
Strong stainless steel quick clamps with integrated EPDM gasket for clamp-together dust collection duct. Compatible with the following standard, heavy-gauge, and airtight duct systems:
Flange Adapters let you switch between flanged duct and clamp-together duct in one fitting. A flange on one end bolts to your existing flanged duct, equipment ports, or any component with a companion flange, while the other end drops straight into your clamp-together run. It's the bridge between two duct systems, letting you tie modern ductwork into existing flanged lines without reworking the whole system.
Features
PROTAPE® PUR 330 AS is a lightweight, microbe-resistant, flame-retardant flex hose built for conveying gases along with abrasive dust, powders, and fibers. Constructed from ester-polyurethane reinforced with a spring steel wire helix, it's highly flexible and compressible at a 3:1 ratio, making it easy to route around equipment and through tight runs. Its permanently antistatic wall (in accordance with ISO 8031) makes it a dependable choice for explosion-hazard areas and static-sensitive operations.
This versatile hose suits extraction systems, dust collection and filtration equipment, oil mist extraction, and extraction arms. It's commonly used on printed circuit board drilling machines, vapor return lines, paint and spray mist extraction, textile fiber extraction, and ventilation systems for barns, clean rooms, and semiconductor production. It also performs well in surface-prep operations such as shot blasting, shipyard work, stripping, floor preparation, and grinding, and can serve as an exterior protective hose in heating applications.
Features
Floor Sweeps remove debris from the shop floor wherever cleanup is needed. Just open the double-hinged door and sweep shop debris away. When you're done, the dust collection system's vacuum holds the door tightly closed to prevent system pressure loss. An integral “foot-push” tab allows hands-free operation, so you can keep sweeping while the door opens for you. Commonly known as a Floor Hood or Dust Nozzle, it's an easy addition to any dust collection setup.
Features
Full Cut-Off Gates let you balance your system and direct airflow exactly where it's needed. The blade slides smoothly in and out of the air stream to fully cut off the air or partially throttle a duct, and a locking thumb screw holds it in any position from wide open to fully closed. It's the simple way to fine-tune suction across individual drops.
Durable cast-aluminum body with rolled-lip ends that connect to Quick Clamp Clamp-Together Duct (CTD) using quick-fit clamps and O-rings.
Features
Hose Adapters connect your ductwork to flexible hose in dust, mist, and fume collection systems. One end is a raw end sized to the inside diameter (ID) of your hose, with an expanded bead knurled onto the adapter. That bead keeps the hose from sliding off and gives you roughly 2 inches of adjustability to fine-tune the fit. It's a fast, reliable way to transition from rigid duct to flex hose, and just as easy to take apart for cleaning or relocation.
Features
Keep your shop cleaner and safer with a Radial Arm Saw Hood, an industrial ventilation fitting built to pull sawdust, chips, and fine particulate straight from the blade path of radial arm and beam saws. It directs high-velocity airflow tightly around the saw blade to trap heavy debris before it becomes an airborne hazard, and it unclips just as easily for cleaning, reconfiguration, or relocating your setup.
Features

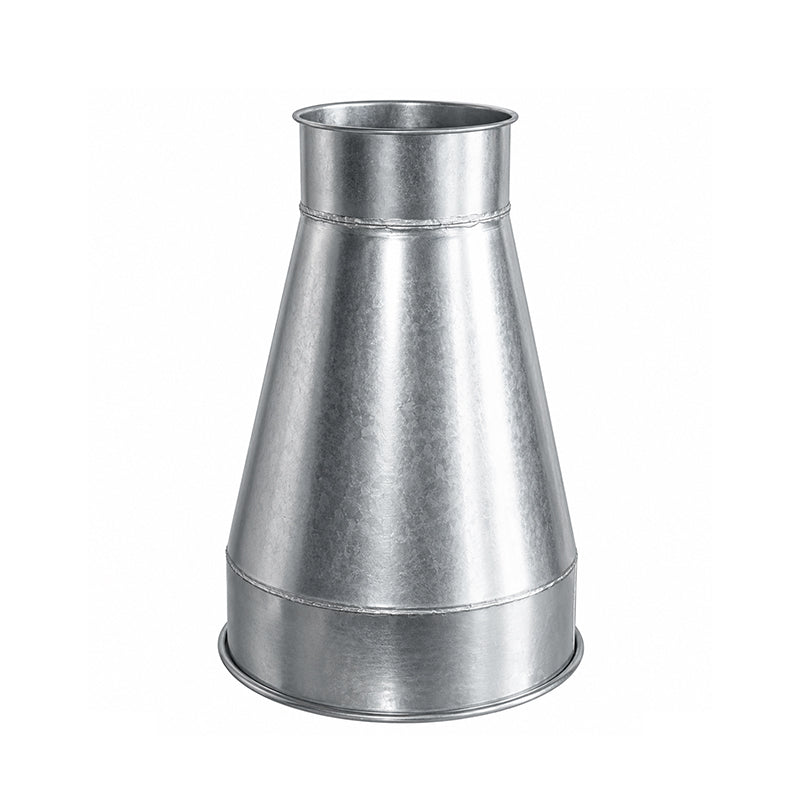

Step a larger-diameter duct down to a smaller one with a smooth, tapered Reducer that keeps airflow moving efficiently through the size change. Built for modular dust collection and ventilation systems, it installs in seconds and just as easily comes apart for cleaning, resizing, or reconfiguring a run.
Whether you're tying a main line into a smaller drop or matching a machine port to your existing duct, a reducer keeps the transition clean and the airflow smooth.
RR05.G18: steps a 5-inch duct down to a 4-inch connection
RR06.G18: steps a 6-inch duct down to a 4-inch connection
RR06-5.G18: steps a 6-inch duct down to a 5-inch connection
RR08.G18: steps an 8-inch duct down to a 6-inch connection
Features
Segmented, or gored, Elbows deliver smooth, sweeping directional changes for larger-diameter dust collection and ventilation lines. Built with a 1.5D centerline radius (the radius equals 1.5 times the duct diameter), they create a gradual turn that keeps airflow moving efficiently and reduces abrasion from high-velocity chips and dust, making them ideal for main lines and larger drops.
Route your system, change direction, or reconfigure a run in seconds, and just as easily take it apart for cleaning or relocation.
Features
Stitch-Welded Elbows deliver tight, precise directional changes for dust collection and ventilation lines. Each fitting is pressed from two metal half-shells and joined by a stitch weld down the seam, creating a factory-sealed turn that holds up in demanding systems. Built with a 1.5D centerline radius (the radius equals 1.5 times the duct diameter), making them ideal for main lines and larger drops.
Route ductwork around obstacles, change direction, or reconfigure a run in seconds, and just as easily take it apart for cleaning or relocation.
Features
