Stitch-Welded Elbows

Stitch-Welded Elbows deliver tight, precise directional changes for dust collection and ventilation lines. Each fitting is pressed from two metal half-shells and joined by a stitch weld down the seam, creating a factory-sealed turn that holds up in demanding systems. Built with a 1.5D centerline radius (the radius equals 1.5 times the duct diameter), making them ideal for main lines and larger drops.

Route ductwork around obstacles, change direction, or reconfigure a run in seconds, and just as easily take it apart for cleaning or relocation.

Features

• Rolled-lip ends connect to Quick Clamp Clamp-Together Duct (CTD)
• Tool-free connection; no rivets, screws, or sealants needed
• 22-gauge Galvanized Steel
• Stamped and stitch-welded for a tight, factory-sealed elbow

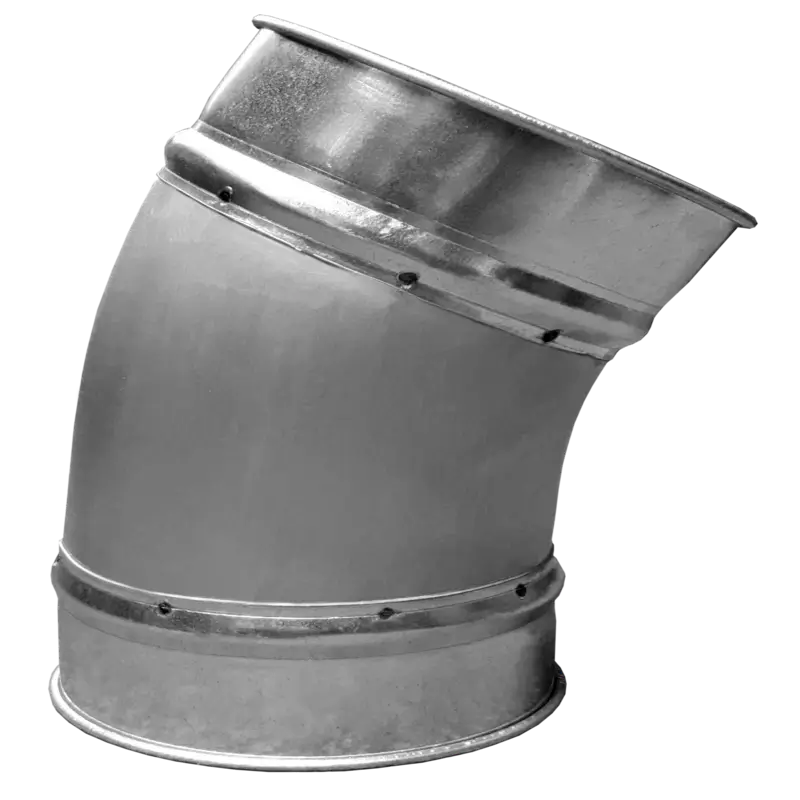

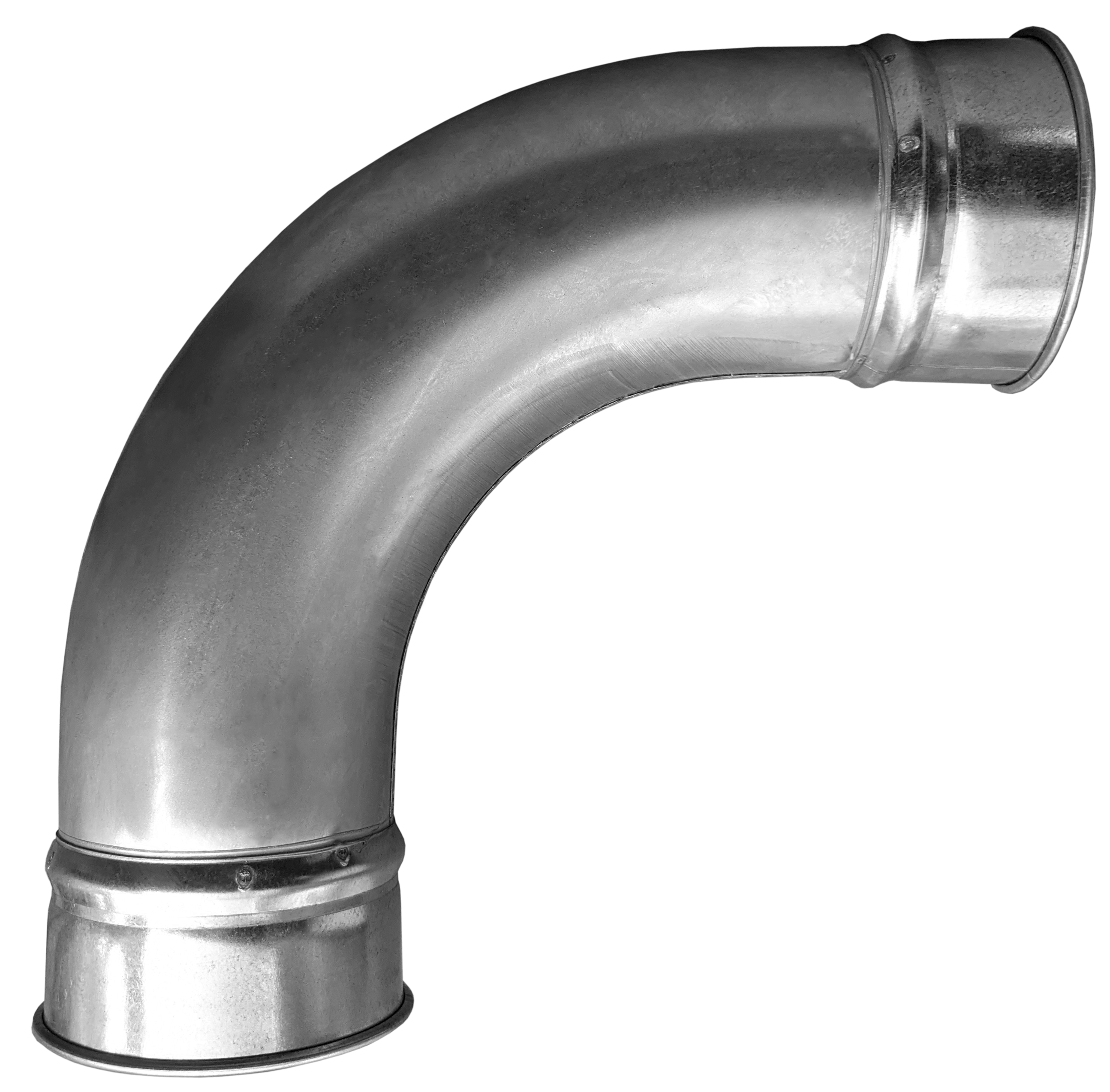

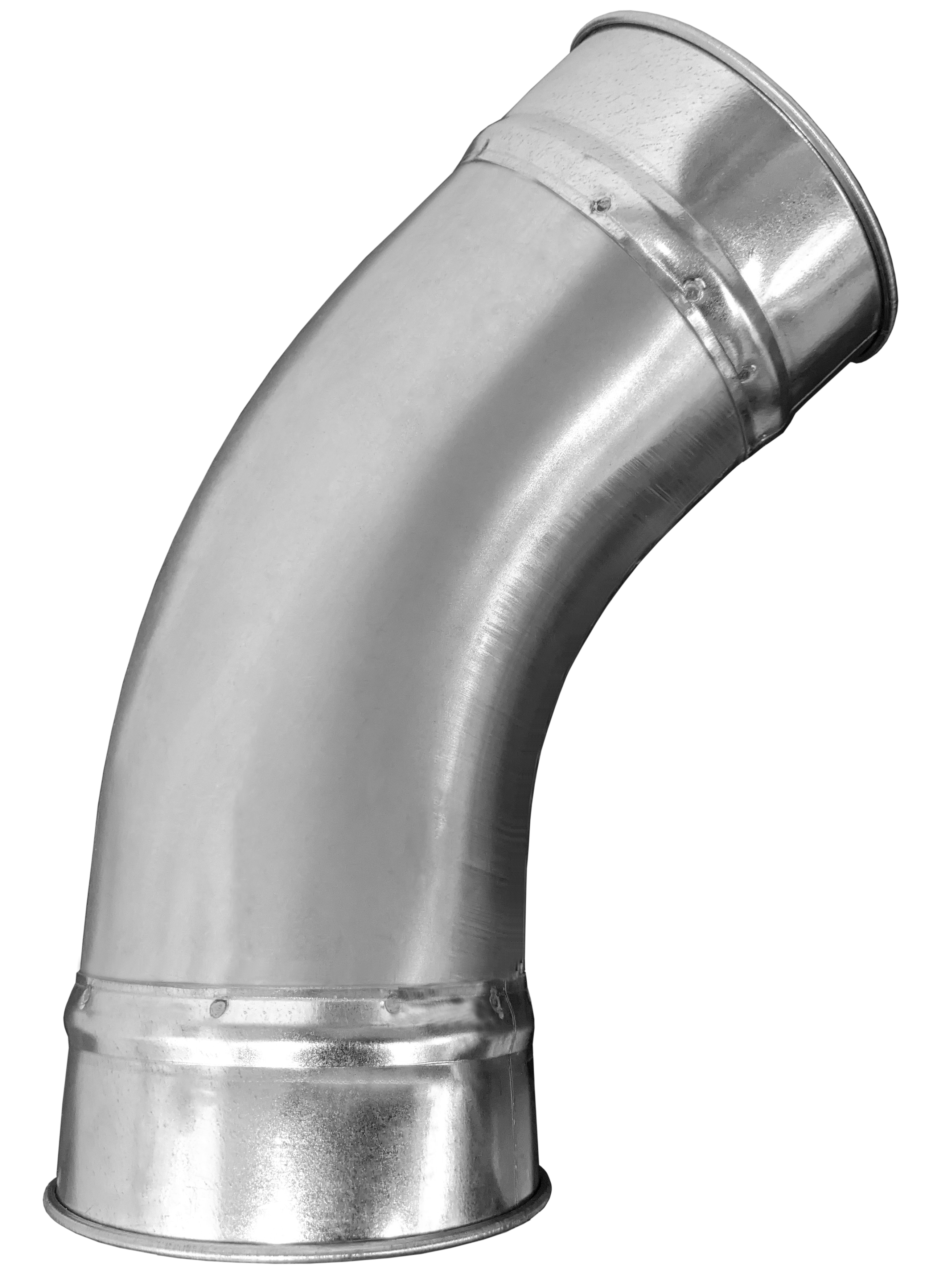

• Available in 30, 45, and 90-degree angles
